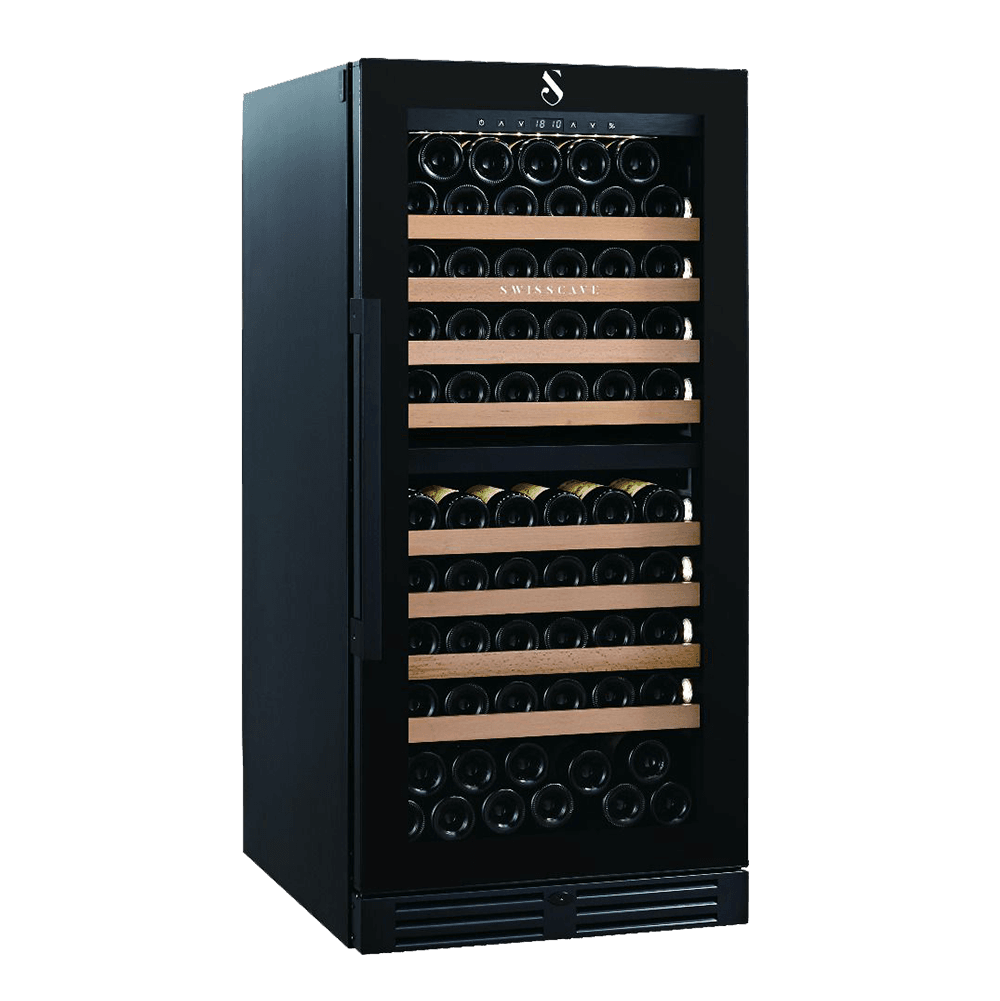

Swisscave Dual Zone Wine Cooler 103 bottle WLB-360DF-MIX

$3,706.00

$3,706.00

8 Beech wood (half Burgundy and half Bordeaux shelves)
Door handle: Anodised, brushed aluminium (optionally available)
Fully glazed UV-resistant, gas-filled, with low energy panes equipped glass door (double glazed)

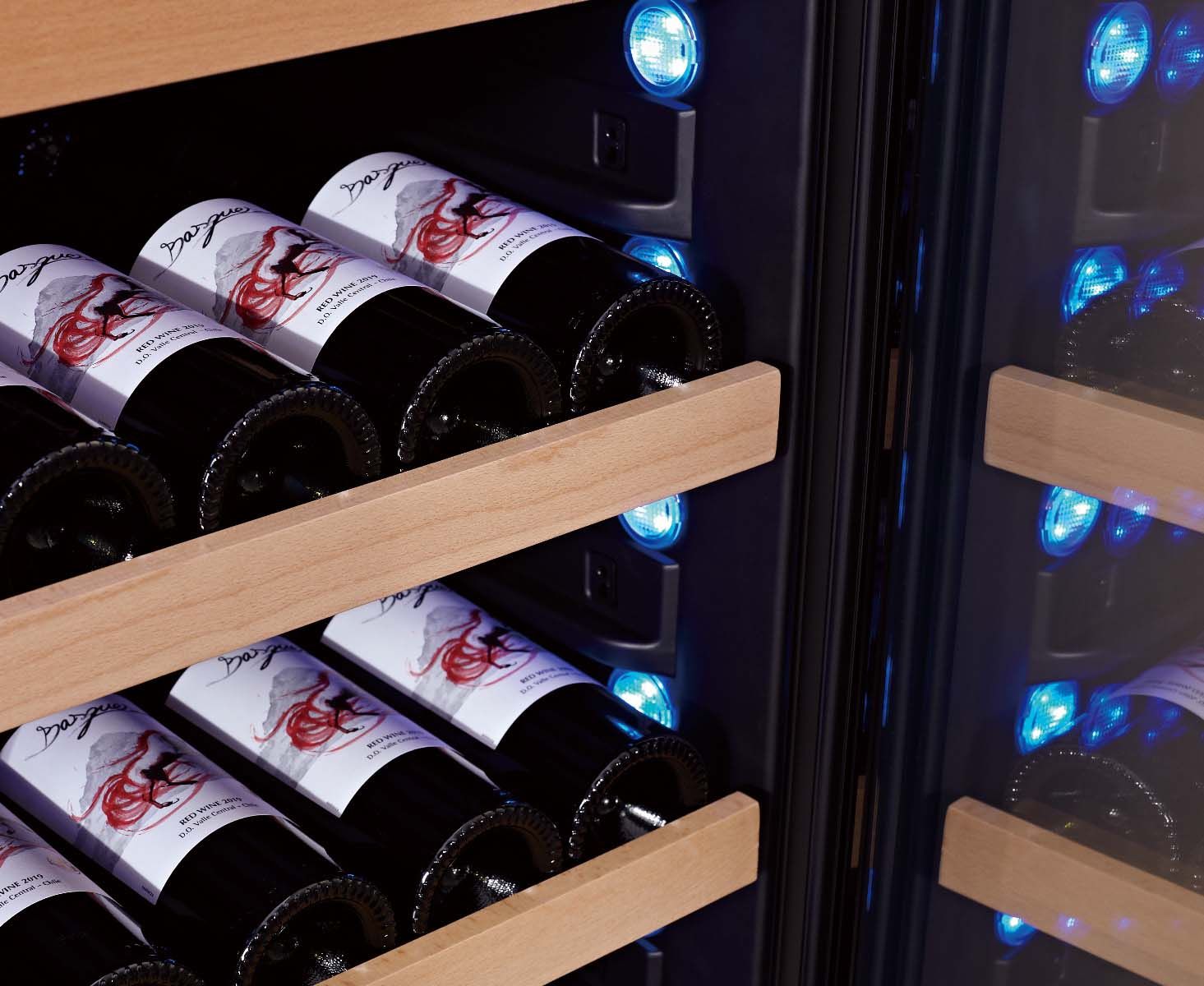

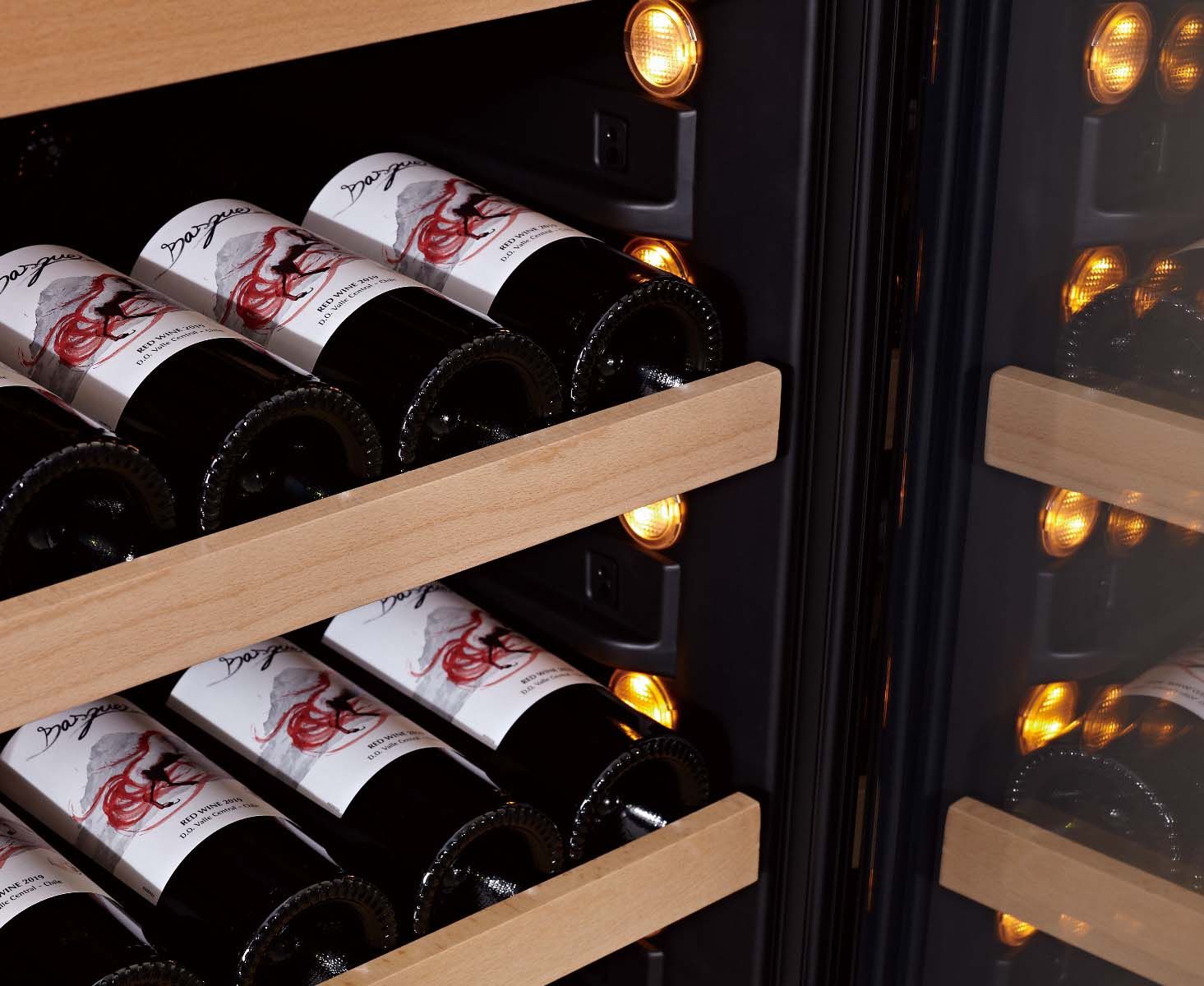

Cooling chamber lighting: All around illumination white, blue, amber (adjustable)

Currently, an average delivery time of 5-15 working days
General Delivery Conditions ⓘ
Warranty duration: 5 years (AWB) on-site (according to our Terms and Conditions)

Delivery Time	In stock: 5-15 days
Temperature zones	2
Product dimensions (H/W/D)	1270 x 595 x 725 mm
Niche dimensions (H/W/D)	1270 x 615 x 750 mm
Noise level	42 dB(A) sound-absorbing recommendation
Power consumption per day	0,386 kWh (ca.)
Net weight	76 kg
Cooler shape	Free-standing or embeddable with shadow gap
Warranty	5 years (AWB)

Bottle capacity (Bordeaux shape, all shelves inserted)	103
Transport weight	92 kg
Humidity	Recommendation 50-70%
Voltage	230 V / 50 Hz
Climate classification	SN-T
Volume	261 l
Temperature range upper zone	9 °C - 20 °C
Temperature range lower zone	5 °C - 16 °C
Temperature zone	5°C - 16°C \| 5°C - 20°C

Optimal usage	Tempering and storing

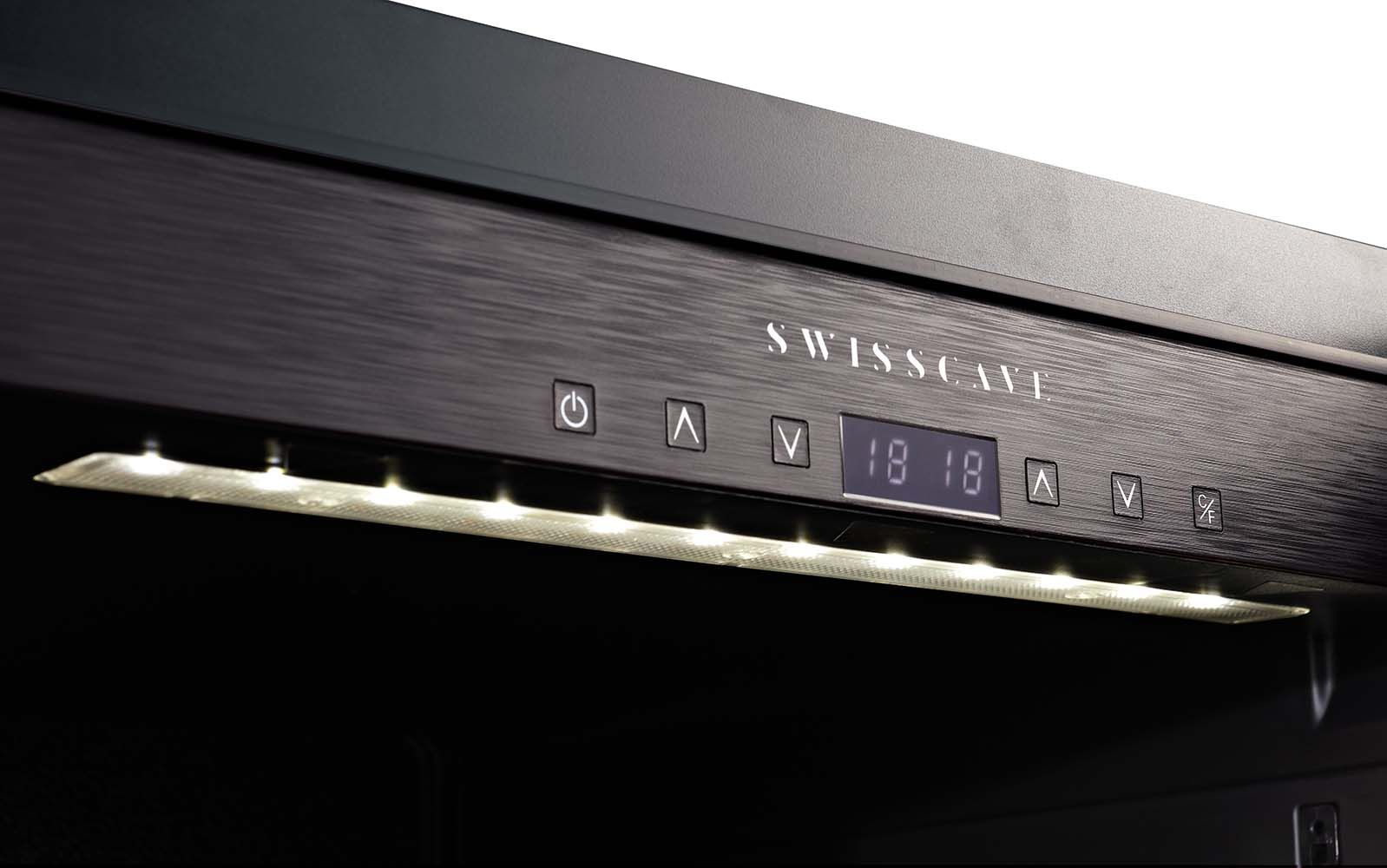

User interface	2 digital displays (set and actual temp.)
Fans	High-performance, low-noise fan technology
Compressor	Embraco Fullmotion (speed-controlled)
Coolant	R600a (environment friendly)
Cooling system	Combined fan and convection cooling
Defrost function	Automatic
Space for oversized bottles (e.g. 1,5lt. Magnum, 3lt.)	On top and bottom shelf
Heating	Powerful winter heating function (*In heating mode, temperature and humidity values may vary from the set value)
Active carbon filters (ensuring optimal air quality)	Yes (2)
Temperatur Memory Function (Power failure)	Yes
Condensation water container	Yes
Acoustic temperature alarm	Yes
Acoustic door alarm	Yes
Vibrationfree implementation	Yes
Tilt protection	Yes
Feet adjustable to compensate uneven floors	Yes

Label	Datasheet-EN-WLB-360DF-MIX
Description	The Datasheet provides the complete technical specifications and key performance data for the SWISSCAVE WLB-360DF-MIX wine cooler.
Type	pdf
Size	162.2 KB
Download

Label	User Manual - Premium and Luxury Series
Description	The manual applies to the Premium and Luxury models of the SWISSCAVE wine cooler series.
Type	pdf
Size	4.7 MB
Download

Label	In-Built Drawing WLB-360, WL355DF
Description	The In-Built Drawing illustrates the recommended installation dimensions and positioning for integrating the SWISSCAVE -360, -355 wine cooler/humidor into cabinetry or kitchen furniture.
Type	pdf
Size	446.1 KB
Download

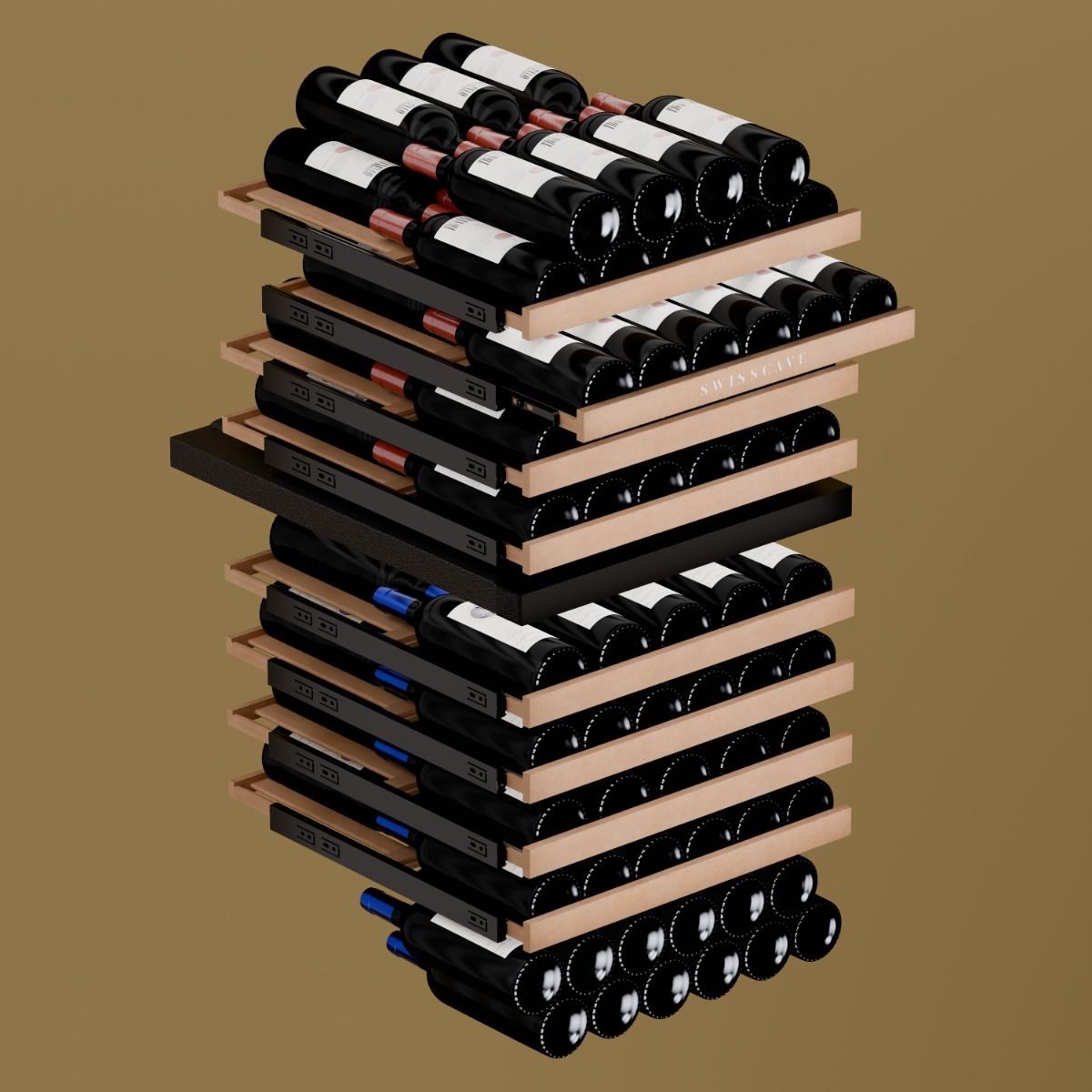

Label	Loading View WLB-360DF-MIX
Description	The Loading View illustrates the optimal arrangement of wine bottles inside the SWISSCAVE WLB-360DF-MIX wine cooler.
Type	pdf
Size	593 KB
Download

Visual Elements & Finishing Details

Casing	Black coated steel
Door glazing	Fully glazed UV-resistant, gas-filled, with low energy panes equipped glass door (double glazed)
Door frame	Filigree edging made of black anodised, brushed aluminium

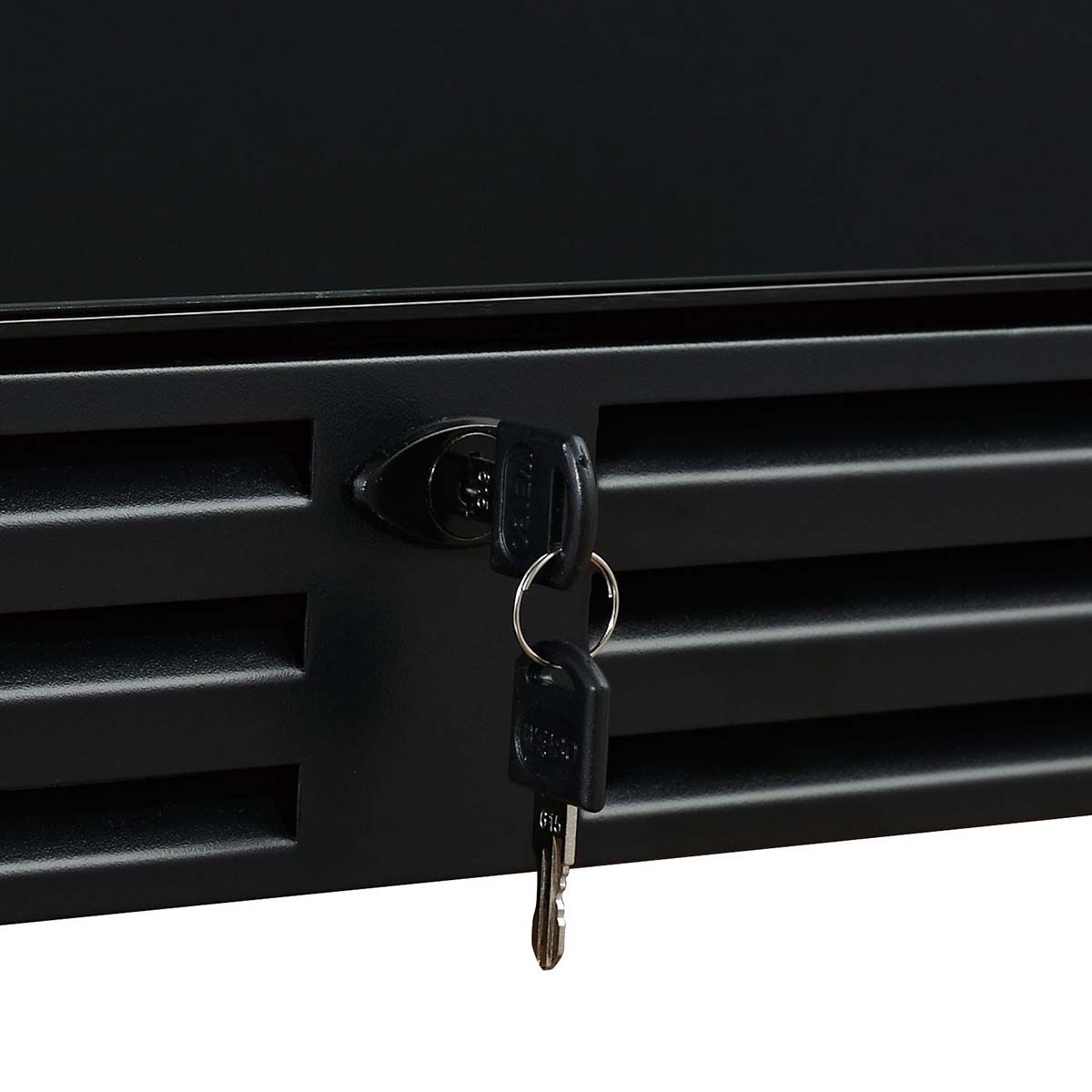

Door lock	Yes
Door handle	Anodised, brushed aluminium (optionally available)
Door hinge	Right
Door hinge convertible as option (right to left)	Yes
Packaging dimensions (H/W/D)	1420 x 650 x 780 mm

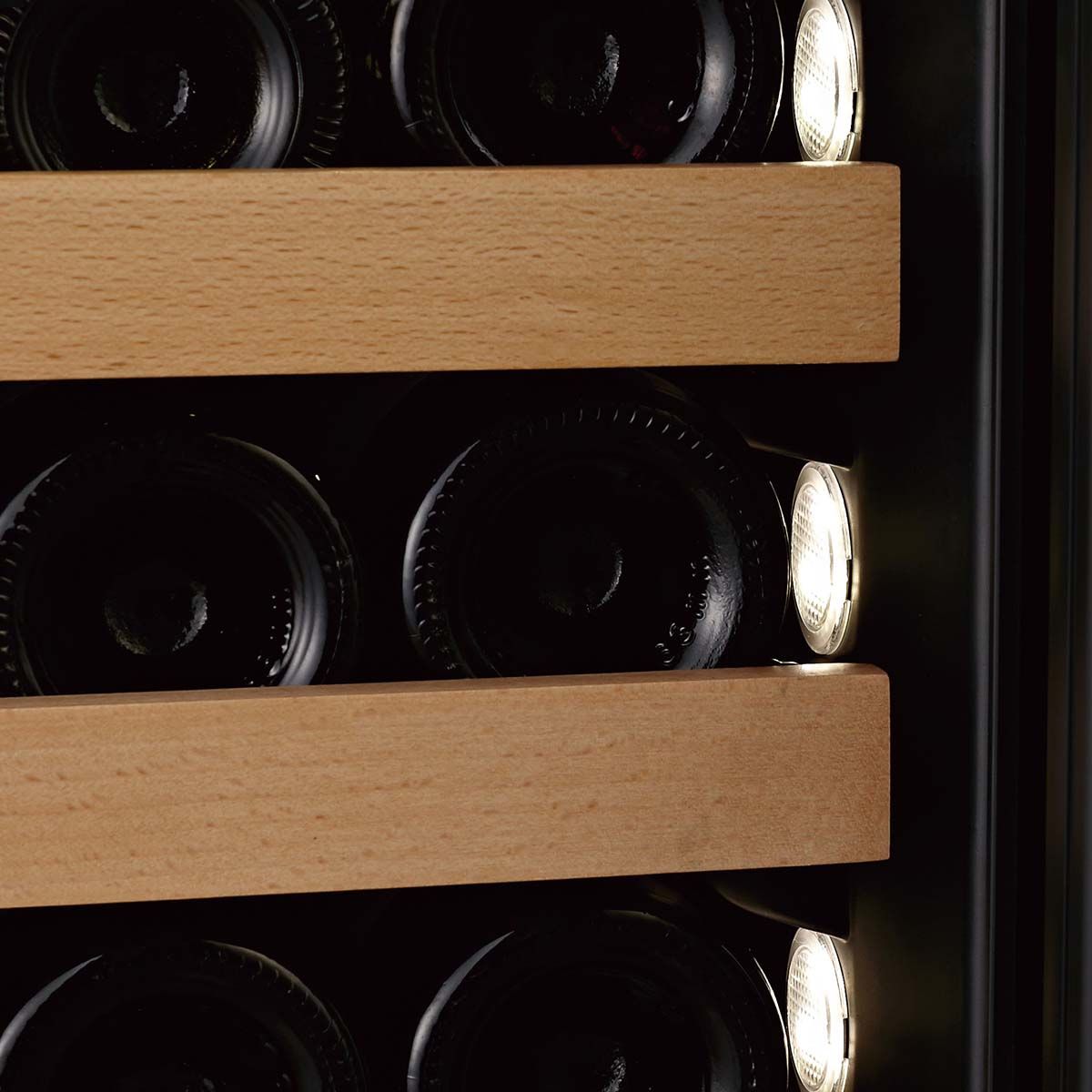

Lighting	All around illumination white, blue, amber (adjustable)
Lighting on/off switch	Yes
Number of shelves total	8
Shelf material	Beech wood

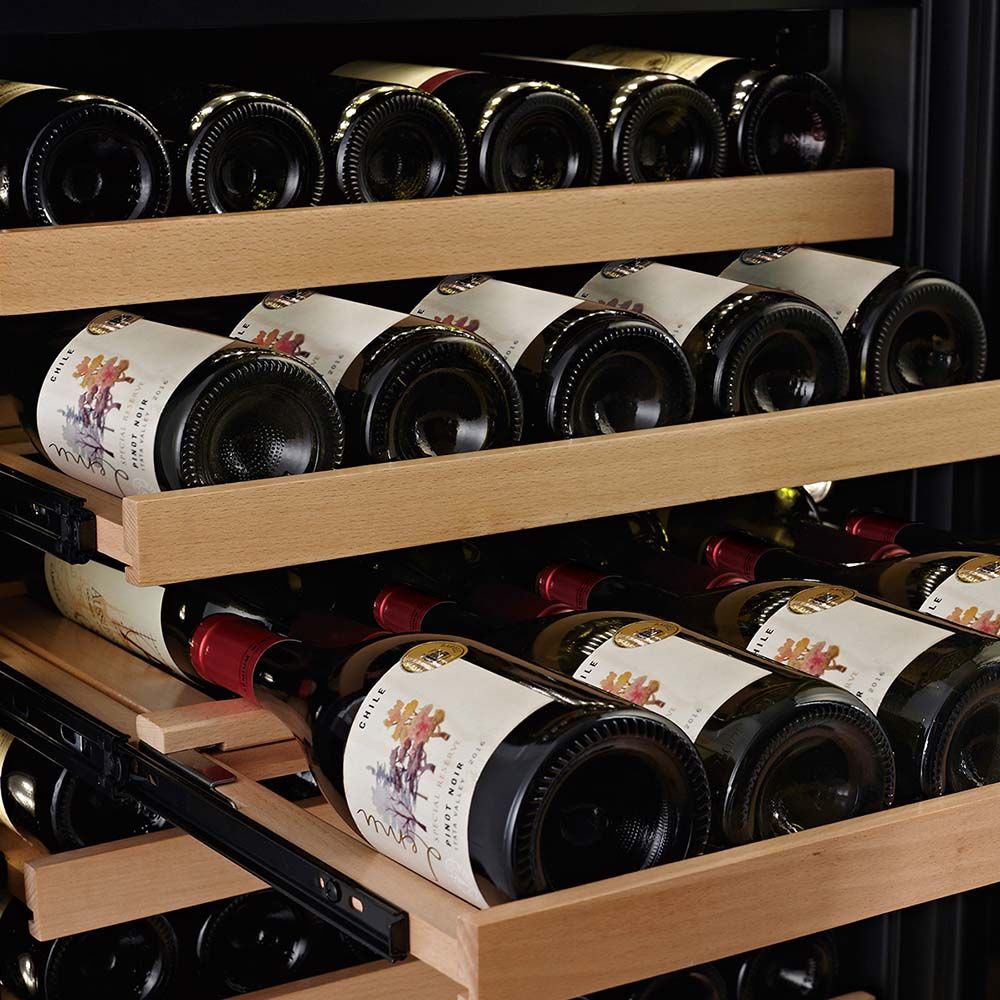

Telescopic shelves on extendable steel ball bearings	Full extension shelves (80%)
Inside casing	Black PUR
Pull-out front panels	Trims in brushed anodised aluminium available in 5 colors
